High power three-way compact System

Technical Feature:

1. Goldbach is designed for high-power three-way audio reproduction.

2. Goldbach employs a high-frequency horn, combines the mid-bass and sub-bass speakers with a body, and applies shock-absorption technology and adjustment of the superimosed angle in the superimposed layer to achieve perfect coupling of the high, mid, and low frequencies during the superimposition process, thereby obtaining the best superimposed coupling effect and sound field distribution

3. Goldbach adopts a unique wooden horn design, making the musical expression more grand, relaxed, and delicate, providing you with an unprecedented experience

4. Goldbach utilizes the specially configured high-frequency aluminum-nickel-cobalt units to enable the entire speaker system to have the characteristics of high temperature resistance, large dynamic range, and high sound quality.

5. Goldbach is a custom model. Through its magnificent appearance and ultra-high-performance drivers, it provides a wide frequency response and energy transfer, being the most faithful reproduction of the unknown

audio range that can be practically applied.

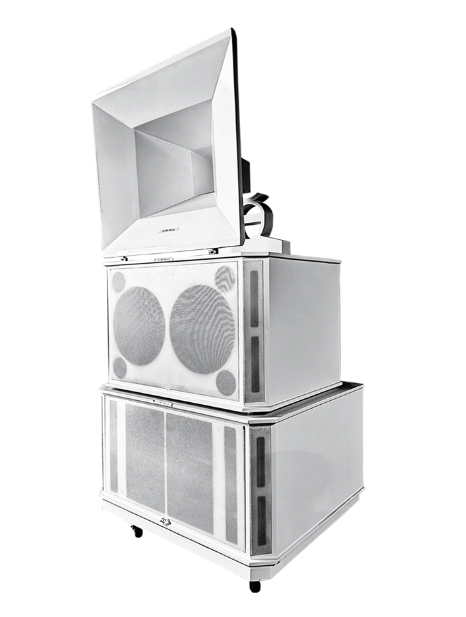

HOMEWELL GOLDBACH

Product Info
  • High power three-way compact system

Extra Info
  • Usable bandwidth(-10dB):30 Hz - 20 kHz
  • Maximum SPL:
  • 149 dB
  • Nominal impedance:SW: 4 ohms LF: 4 ohms HF: 16 ohms
  • Nominal directivity (-6dB):
  • H × V: 90° × 60°
  • RATED POWER:SW: 2400W LF: 2000W HF: 1×160 W
  • Components:
  • SW: 2 × 18〞 neodymium magnet ,waterproof cone
  • LF: 2 × 15〞 alnico magnet drivers,waterproof cone
  • HF: 1 × 4〞 Beryllium diaphragm compression driver
  • Physical data:
  • H x W x D: 2095 × 1158 × 950 mm
  • Weight (net):228 kg
