ART SERIES

ART SERIES

The features of ART series speakers: Designed by master artists, patented works,high appearance standards, high fidelity, high power output, low standing wave,integrating unique technologies,bringing you the sounds that touch your heart.

The cabinet adopts a  polygonal wedge-shaped structure and BDAS (BI-DIRECTIONAL AERO-DYNAMIC SLOT)technology for low-frequency reflection.The design places the openings of the reflection holes at the central positions on both sides of the cabinet,avoiding standing waves within the cabinet.  The air flows through the central openings on both sides of the speaker and is then directed forward and backward. This not only enhances the low-frequency extension and energy perception but also solves the two major problems that traditionl low-frequency reflection holes are prone to. namely "influence of standing waves within the cabinet"and  "low-frequency muddiness caused by the duct". lt combines precision, refinement, and. excel lence.The application of elliptical waveguide and phase plug in the horn  makes the sound more accurate,with  good  low-frequency elasticity,sweet mid-range,and delicate high-freqyency.It is difficult to find a comparable good speaker among the top brands of imported speakers on the market.

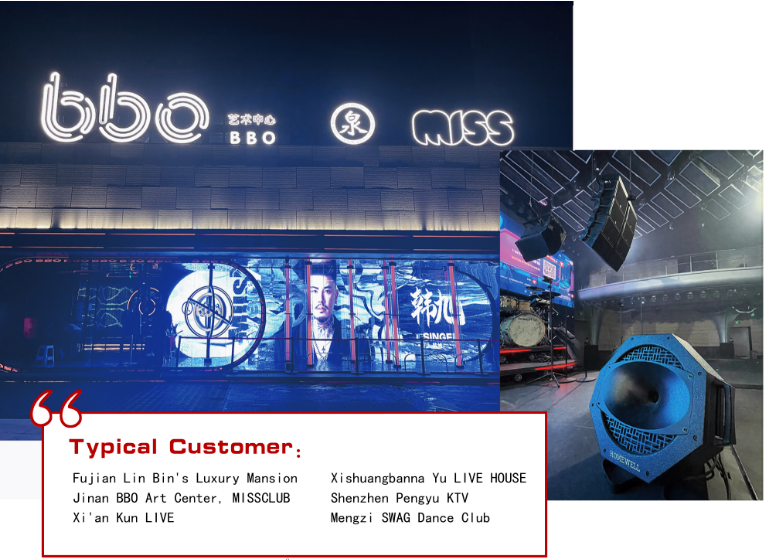

Applicable scenarios: High-end LIVE HOUSE, PARTY K, HIFI cinema, NIGHT CLUB,etc.

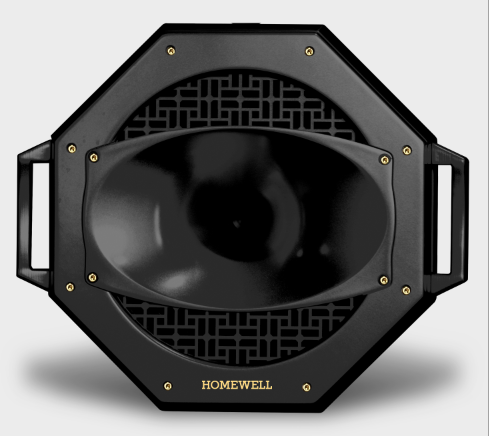

HOMEWELL ART-15F

Product Info
  • 15-inch two-way full range coaxial enclosure

Extra Info
  • Usable bandwidth (-10dB): 50 Hz - 20 kHz
  • Nominal directivity (-6dB): H:90° V:60°
  • Maximum SPL: 139 dB
  • RMS handling capacity : 650 W
  • Components
  • LF: 1 x 15" weather-resistant transducer
  • HF: 1 x 3" diaphragm compression driver
  • Nominal impedance: 8 ohms
  • Physical data: H x W x D: 503 x 578 x 468 mm
  • Weight (net): 27 kg
  • Connectors: 2 x 4-point Speakon®

Homewell Professional Audio

St Davids House

Adcroft Street

Stockport

SK1 3HW

Tel: +44 (0)161 666 6363

Email: info@ads-worldwide.net


HOMEWELL ART-15FB

Product Info
  • 15-inch two-way full range coaxial enclosure

Extra Info
  • Usable bandwidth (-10dB): 50 Hz - 20 kHz
  • Nominal directivity (-6dB): H:90° V:60°
  • Maximum SPL: 138 dB
  • RMS handling capacity : 620 W
  • Components
  • LF: 1 x 15" weather-resistant transducer
  • HF: 1 x 3" diaphragm compression driver
  • Nominal impedance: 8 ohms
  • Physical data: H x W x D: 503 x 578 x 468 mm
  • Weight (net): 27 kg
  • Connectors: 2 x 4-point Speakon®

Homewell Professional Audio

St Davids House

Adcroft Street

Stockport

SK1 3HW

Tel: +44 (0)161 666 6363

Email: info@ads-worldwide.net


HOMEWELL ART-12

Product Info
  • 12-inch two-way full range coaxial enclosure

Extra Info
  • Usable bandwidth (-10dB): 55 Hz - 20 kHz
  • Nominal directivity (-6dB): H:90° V:60°
  • Maximum SPL: 137 dB
  • RMS handling capacity : 450 W
  • Components
  • LF: 1 x 12" weather-resistant transducer
  • HF: 1 x 3" diaphragm compression driver
  • Nominal impedance: 8 ohms
  • Physical data: H x W x D: 403 x 463 x 376 mm
  • Weight (net): 21.6 kg
  • Connectors: 2 x 4-point Speakon®

Homewell Professional Audio

St Davids House

Adcroft Street

Stockport

SK1 3HW

Tel: +44 (0)161 666 6363

Email: info@ads-worldwide.net


HOMEWELL ART-10

Product Info
  • 10-inch two-way full range coaxial enclosure

Extra Info
  • Usable bandwidth (-10dB): 60 Hz - 20 kHz
  • Nominal directivity (-6dB): H:90° V:60°
  • Maximum SPL: 132 dB
  • RMS handling capacity : 300 W
  • Components
  • LF: 1 x 10" weather-resistant transducer
  • HF: 1 x 1.73" diaphragm compression driver
  • Nominal impedance: 8 ohms
  • Physical data: H x W x D: 375 x 438 x 355 mm
  • Weight (net): 13.2 kg
  • Connectors: 2 x 4-point Speakon®

Homewell Professional Audio

St Davids House

Adcroft Street

Stockport

SK1 3HW

Tel: +44 (0)161 666 6363

Email: info@ads-worldwide.net


HOMEWELL ART-8

Product Info
  • 8-inch two-way full range coaxial enclosure

Extra Info
  • Usable bandwidth (-10dB): 65 Hz - 20 kHz
  • Nominal directivity (-6dB): H:90° V:60°
  • Maximum SPL: 128 dB
  • RMS handling capacity : 260 W
  • Components
  • LF: 1 x 8" weather-resistant transducer
  • HF: 1 x 1.73" diaphragm compression driver
  • Nominal impedance: 8 ohms
  • Physical data: H x W x D: 350 x 300 x 285 mm
  • Weight (net): 10 kg
  • Connectors: 2 x 4-point Speakon®

Homewell Professional Audio

St Davids House

Adcroft Street

Stockport

SK1 3HW

Tel: +44 (0)161 666 6363

Email: info@ads-worldwide.net


HOMEWELL ART-6.5

Product Info
  • 6.5-inch two-way full range coaxial enclosure

Extra Info
  • Usable bandwidth (-10dB): 72 Hz - 20 kHz
  • Nominal directivity (-6dB): H:90° V:60°
  • Maximum SPL: 123 dB
  • RMS handling capacity : 200 W
  • Components
  • LF: 1 x 6.5" weather-resistant transducer
  • HF: 1 x 1.5" diaphragm compression driver
  • Nominal impedance: 8 ohms
  • Physical data: H x W x D: 252 x 290 x 238 mm
  • Weight (net): 6.5 kg
  • Connectors: 2 x 4-point Speakon®

Homewell Professional Audio

St Davids House

Adcroft Street

Stockport

SK1 3HW

Tel: +44 (0)161 666 6363

Email: info@ads-worldwide.net

To enquire about any of our products, please contact us.
